| Tp 5 - Junkers Ju 52/3m (1940-1945) | ||
|
|
Page 3 (3) |
|
|
|
||
 |
||
|
|
||
| Tp 5 - Junkers Ju 52/3m (1940-1945) | ||
|
|
Page 3 (3) |
|
|
|
||
|
|
||

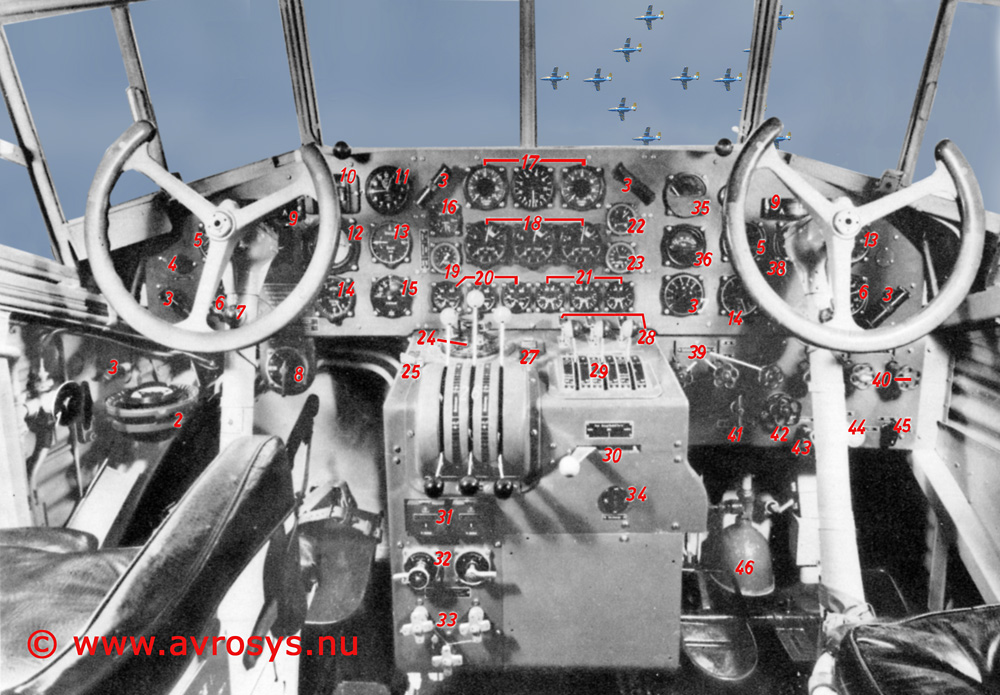

| 1. Selector valve for priming pump | 10. Blind landing instrument | 19. Fire extinguisher pressure | 28. Magneto switch | 37. Switch - cylinder temperature |
| 2. Compass | 11. Clock | 20. Oil temperature | 29. Fuel selector valves | 38. Rate of turn indicator |
| 3. Switch for lightning | 12. Artificial horizon | 21. Fuel and oil pressure (comb.) | 30. Fuel selector valve | 39. Valve for oil cooler |
| 4. Indicator for pitot tube | 13. Variometer | 22. Brake pressure meter | 31. Switch for landing lights | 40. Switch for carburator heating |
| 5. Airspeed indicator | 14. Altimeter | 23. Brake pressure difference meter | 32. Switch for slip and turn indicator and remote compass | 41. Valve for pneumatics |
| 6. Precision altitude meter | 15. Autopilot | 24. Ignition switch | 33. Fire valves | 42. Control for pneumatics |
| 7. Switch for instrument lightning | 16. Vacuum meter | 25. Stop for throttle control | 34. Forward position light | 43. Valve for loading of compressed air |
| 8. Valve for wing de-icing | 16. Vacuum meter | 26. Mixture controls | 35. Outside temperature | 44. Priming pump |
| 9. Autopilot course indicator | 18. Fire extinguisher pressure | 27. Main switch | 36. Cylinder temperature | 45. Distribution crane for priming pump |
| 46. Compressed air bottle for brakes |
 |
 |
 |
|
|
||
 |
||
 |
||
| © Lars Henriksson |
Updated: 2013-05-05 |
|
